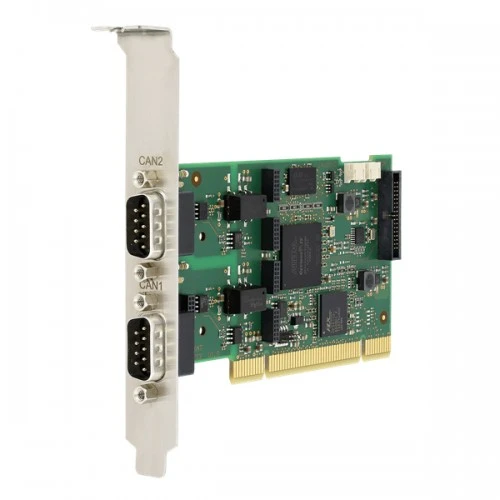

CAN-IB300/PCI PC/CAN interface board
CAN-IB300/PCI PC/CAN interface board
Precio:
525.00€
- : En stock
- Marca: HMS Industrial Networks
- Model: 1.01.0291.22001
CAN-IB300/PCI PC/CAN interface board
With the CAN-IB300/PCI IXXAT offers an interface board based on a modern and highly modular concept.
Features and benefits
- Economically priced passive PCI board (no microprocessor on board)

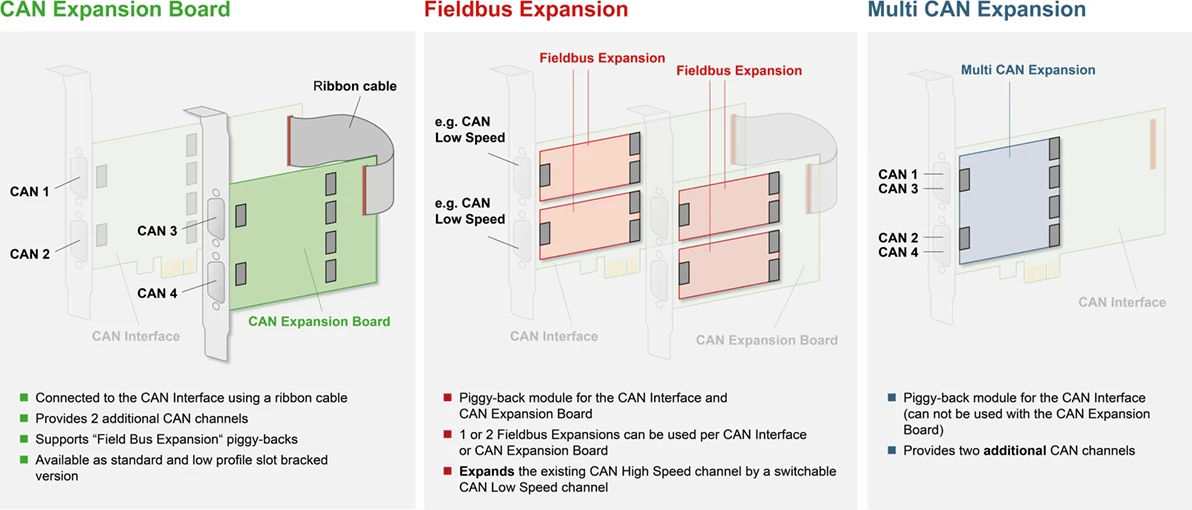

- Easy expandable via field bus expansion and expansion board
- Up to four CAN channels (High-/Low-Speed optional switchable)
- Galvanic isolation of the CAN interface
- Uniform driver packages support all IXXAT CAN and CAN-FD interfaces and allow easy change of the PC interface type
- Powerful programming interface for Windows "VCI" as well as "ECI" for Linux, QNX, RTX, INtime and VxWorks
The CAN-IB300/PCI is available with up to four CAN channels and with galvanic isolated interfaces. For use in the automotive field the high-speed CAN channels can optionally be switched to low-speed CAN via software. Furthermore, the modular architecture of the interface card enables the easy extension with customer specific interfaces via piggyback modules.
Multiple cards can be installed in one PC if more CAN channels are required.
Model numbers
| CAN ports | Galv. iso. | Model numbers | Optional expansions | Additional information |
|---|---|---|---|---|
| 1 | X | 1.01.0291.12001 | 1 x 1.01.0241.20001 Low Speed CAN Fieldbus Expansion with galv. iso. |
|
| 2 | X | 1.01.0291.22001 | 1-2 x 1.01.0241.20001 Low Speed CAN Fieldbus Expansion with galv. iso. |
|
| 4 | X | 1.01.0291.22001 + 1.01.0242.22000 Multi CAN Expansion |
Two CAN ports on each SUB-D9 plug | |
| 4 | X | 1.01.0291.22001 + 1.01.0240.22103 CAN Expansion Board |
1-4 x 1.01.0241.20001 Low Speed CAN Fieldbus Expansion with galv. iso. |
Two slot bracket ports required |
